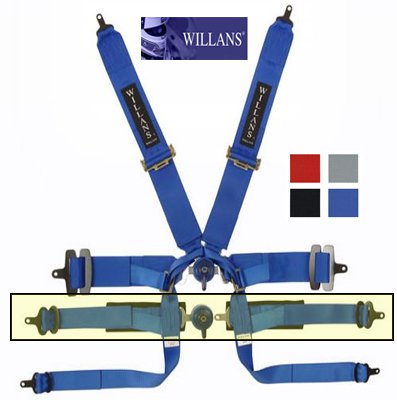

CLUB SINGLE SEATER 6X6 2"/3" FIA

Suitable for Single Seater and GT Cars with appropriate mountings. Six strap body harness with six vehicle attachment points using 5/16” (8mm) diameter bolt fixings for all mountings. All shoulder straps are 75mm wide. Lap straps are either 75mm wide or 50mm wide webbing with 75mm wide load spreader pad, crutch straps are 50mm wide with 25mm wide loop one end to be passed through the ‘D’ rings on the lap straps before passing the shoulder strap down through the loop prior to connecting into the release mechanism (see photo) All straps fully adjustable, 75mm shoulder straps use Willans own anti-creep adjuster, 75mm and 50mm lap straps and crutch straps use double steel attachment lugs to give pinch plate spanner adjustment for control of wearer straps. Crutch straps are designed to stop driver submarining through the harness in high ‘g’ decelerations. A Willans aircraft type rotary multi-point quick release mechanism is used for central fastening. Shoulder and lap straps connect individually to the release mechanism, except the right-hand lap strap which is permanently fixed. Can be supplied with shoulder upper looped & sewn or with 3/8” (9mm) or 7/16” (11mm) Bolt mounting
