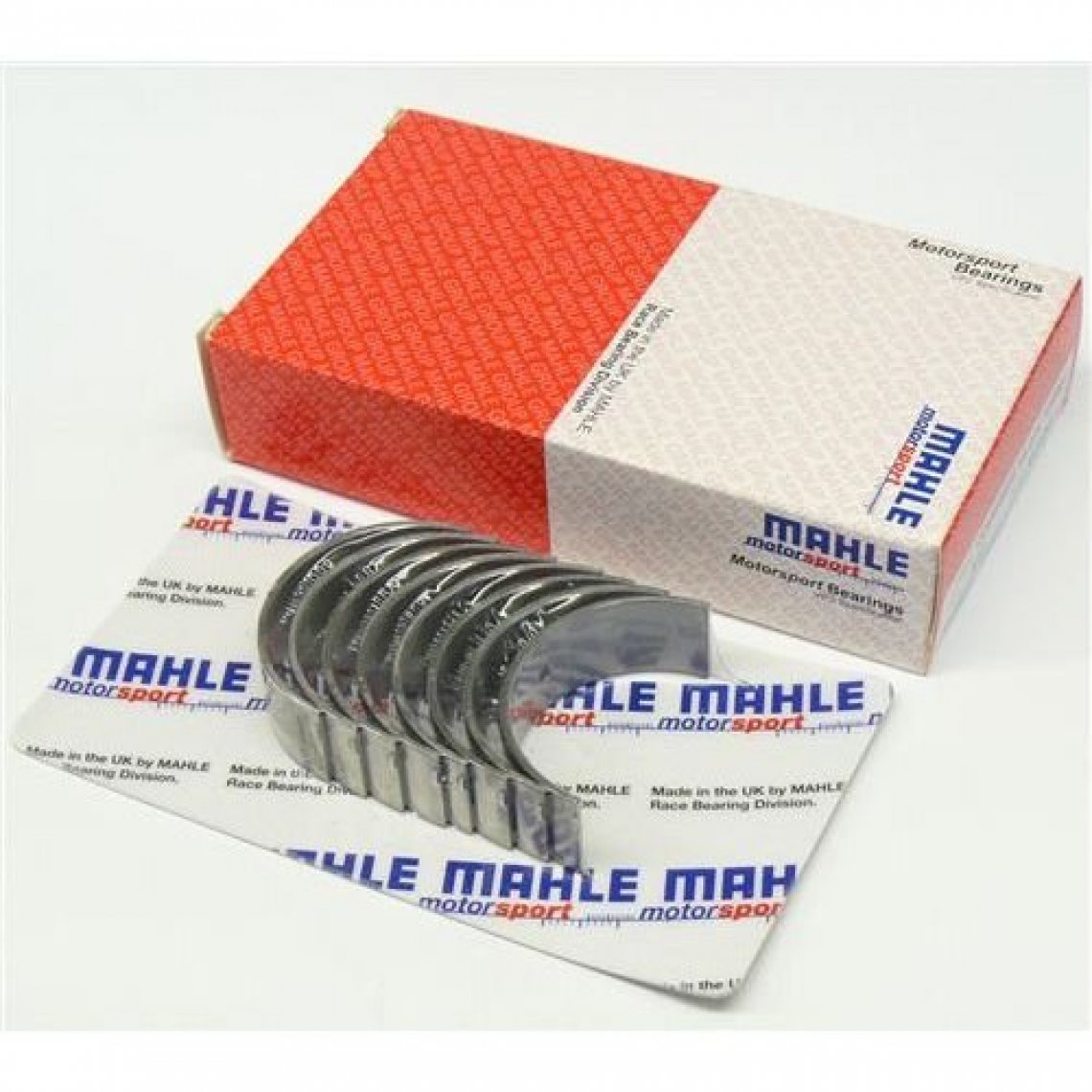

CON ROD BEARINGS SET MORGAN 4/4 1968-

Crankshaft Bearing set Morgan 4/4 1968-

HD cast substrate with lead indium overlay. 19mm wide. Con rod/big end journal diameter 49.199/49.212mm 1.9370/1.9375"

The new range of Mahle Motorsport bearings contains technology that has been transferred from Mahle’s F1 bearing technology. All bearings in this range are identified by laser marking as opposed to stamping.

Benefits of Laser Marking:

The cheapest method of identifying a bearing is by stamping. For motorsport applications where higher temperatures are experienced, the effectiveness of heat transfer into the housing should not be compromised. If the stamping is heavy and extends quite far round the bearing causing poor back contact then the efficiency of heat transfer will be reduced.

Laser marking is an alternative method which creates smaller, more consistent marking which does not distort the backing and as such does not disrupt the back contact and subsequent heat transfer.

Suitable only for race engines using a steel narrow journal crank (bearing journal width of 19mm)

Ford Pre-Crossflow OHV Kent
Application:

• Ford Anglia 105E 1.0 1959-1967
• Ford Anglia 123E 1.2 1959-1967
• Ford Cortina Mk1 1.2/1.5 1962-1966
• Ford Cortina Mk2 1.2/1.3/1.5 1966-07/1967
• Ford Consul Classic 1.3/1.5 1961-1963
• Ford Consul Capri 1.3/1.5 1961-1964
• Ford Consul Corsair 1.5 1964-1965
• Ford Prefect 107E 1.0 1959-1961
• Marcos 1500 GT
• Morgan 4/4 1.0/1.3/1.5 1960-1968

Ford Crossflow OHV Kent
Application:

• Ford Capri Mk1 1.3/1.6 1969-1974
• Ford Capri Mk2/Mk3 1.3 1974-1987
• Ford Cortina Mk2 1.3/1.6 07/67-1970
• Ford Cortina Mk3 1.3/1.6 1970-1976
• Ford Cortina Mk4/Mk5 1.3 1976-1982
• Ford Escort Mk1 1.1/1.3/1.6 Mexico 1968-1974
• Ford Escort Mk2 1.1/1.3/1.6 1975-1980
• Ford Fiesta Mk1 1.3 Supersport/1.6 XR2 1980-1983
• Caterham 7
• Morgan 4/4 1600 1.6 1968-
• TVR 1600M 1.6 1972-1977

Ford Lotus Twin Cam 8v 1558cc
Application:

• Ford Lotus Cortina Mk1 1963-1966
• Ford Lotus Cortina Mk2 1967-1970
• Ford Escort Twin Cam 1968-1970
• Lotus Elan 1962-1974
• Lotus Europa 1971-1975
• Caterham 7 1973–1974

Ford Cosworth BD Series 16v
Application:

• Ford Escort Mk1 RS1600 1970-1974
• Ford Escort Mk2 RS1800 1975-1977
• BDA 1.6 road engine
• BDB/BDC 1.7 rally/race engine
• BDD 1.6 race Atlantic engine
• BDE 1.8 race engine
• BDG 2.0 race engine
• BDH 1.3 race engine
• BDJ 1.1 race engine
• BDP 2.0 race engine
• BDR 1.6/1.7 Caterham Super Seven engine
• BDT 1.8 RS200 engine
• BDX 2.0+ race engine
