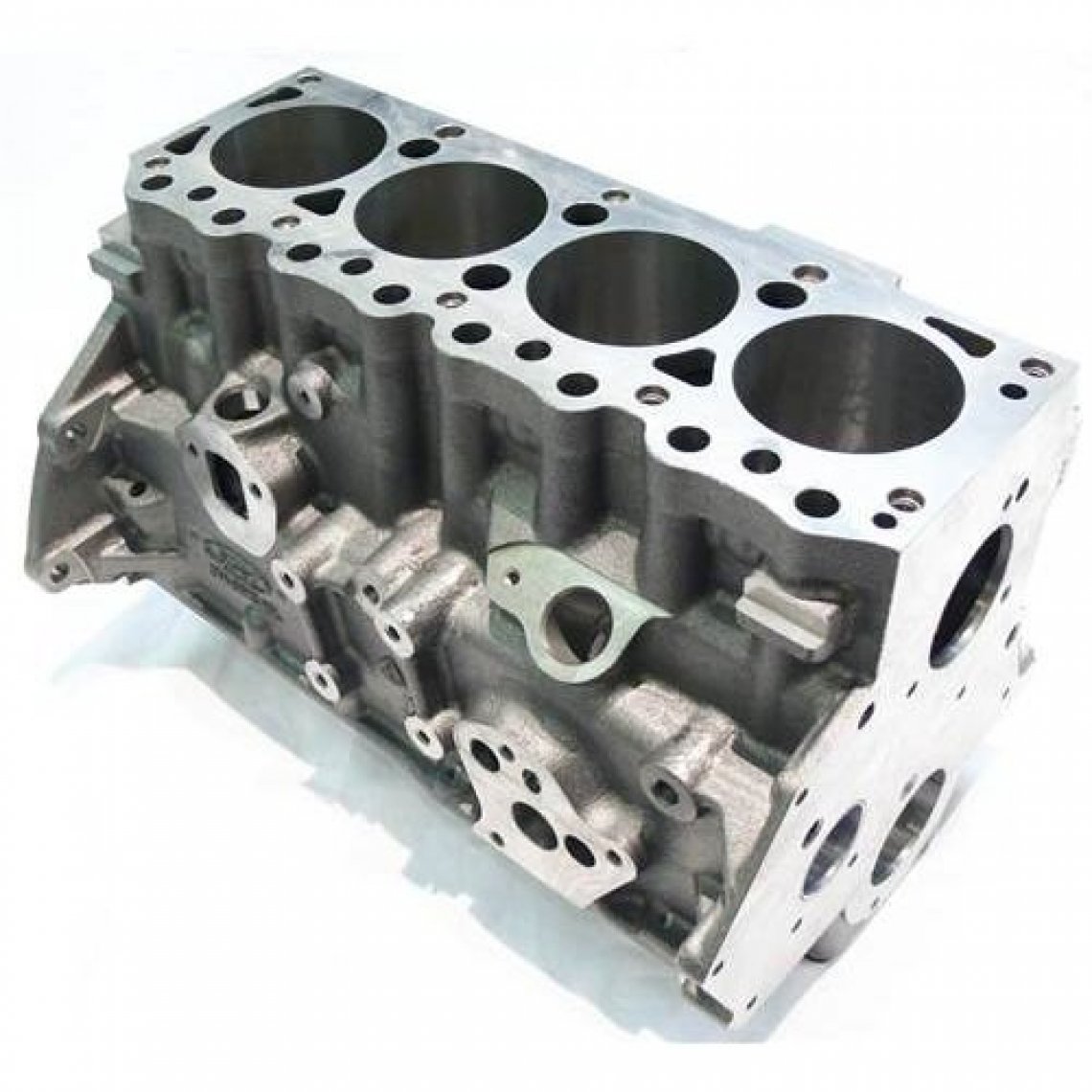

ENGINE BLOCK MORGAN 4/4 1970-1982

Engine Block Morgan 4/4 1970-1982

The legendary Formula Ford Kent block has been remanufactured by Fords using an all new grey iron casting that is stronger than the original.

Specifications include:

• Standard 8.200” deck height with extra material allowing decking if required
• Cylinder bores semi-finished to 3.186” to allow the engine to be built to desired clearances
• Tappet bore diameter .565”
• Block cast from 40,000 PSI grey iron
• Lower bell housing bolt bosses reinforced
• Selected areas around main bearing webs strengthened
• Centre main is machined to accept upper and lower crankshaft thrust washers (SOHC Pinto type)
• Includes cam bearings

Ford Crossflow OHV Kent
Application:

• Ford Capri Mk1 1.6 08/1970-1974
• Ford Cortina Mk3 1.6 08/1970-1976
• Ford Escort Mk1 1.6 Mexico 1970-1974
• Ford Escort Mk2 1.6 1975-1980
• Ford Fiesta Mk1 1.6 XR2 1980-1983
• Caterham 7
• TVR 1600M 1.6 1972-1977
